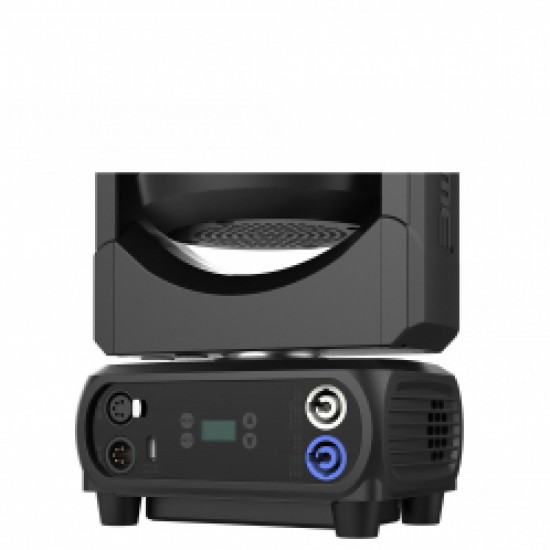

ACME OXYGEN

Functional Overview

Oxygen is a small, super-fast, bright and lightweight LED wash luminaire utilizinga 7x40W Osram RGBW 4-in-1 light source. The fast zoom(1:7 ratio, 6-40˚)cango from a tight 6˚ beam to a wide, soft 40˚wash. The 7 LEDs offer variable-speed strobe, smooth dimming and color changing to create striking psychedelic effects. Other features include familiarpowerconnectors, 5-pin XLR pass-through/daisy-chain, OLED touch display and remote RDM function.

The extremely compact fixture weighs just 5kg, so it can fit into virtually any position. It is ideal for all small-to-medium applications, particularly those where space and accessibility is an issue.

Features

• Light Source: Osram 7x40W RGBW LED
• Powerful beam and wash effects
• Variable CTO: 2500K - 8000K
• Pixel control
• Uniform RGBW color mixing and rainbow effect
• Motorized linear zoom system
• Zoom range: 6-40°
• Outstanding strobe effect with variable speed
• Smooth dimming from 0-100%
• Compact design, small size
• Fast and silent operation
• Flicker-free management
• Dust-proof and oil-proof design

Technical & Specification

Model

CM-400Z

Light Source

Light Source: Osram 7x40W RGBW LED

Color Temperature: 2500-8000K

LED life expectancy: 30,000 hours

Optical System

Advanced optical system for clear, wide-ranging beam & wash effects

High-efficiency zoom optical system (ratio 1:6.7)

Zoom range: 6-40°

Total lumen output: up to 4,200 lumens

Control & Program

4-button touch panel

Display: OLED display

Protocols: DMX512, RDM

DMX Protocol modes: 2

Control channels: 17,37

Pan/Tilt Resolution: 16-bit

Dimmer: 16-bit

Firmware upgrade via DMX link & USB

Pan & Tilt

Pan movement: 540°

Tilt movement: 250°

Automatic position correction

Electrical & Connectors

Power supply with electronic auto-ranging

Input voltage range: AC 100-240V, 50/60Hz

Power consumption: 340W

Power Connector input/output

Data in/out: 3-pin and 5-pin XLR

Fixture Specification

Height: 336mm (13.2”)

Width: 216mm (8.5”)

Depth: 138mm (5.4”)

Weight: 5kg (11lb)

Work environment

Maximum ambient temperature: 40°C

Maximum surface temperature: 65°C

Minimum operating temperature: 0°C

Approvals

CE compliant

Installation

Horizontal or vertical mounting

Operating position is universal

2 pairs of 1/4-turn locking points under the base

1x fast-locked clamps with 1/4-turn locks for 50mm truss

Safety cable attachment point

Included items

User Manual

Power Cable

Optional Accessories (with item code)

Raincover: 3033001749

Clamp: 2060001614 (C-250)

Safety cable: 2060000200 (SW-02)

Signal line: 3-pin or 5-pin signal line
