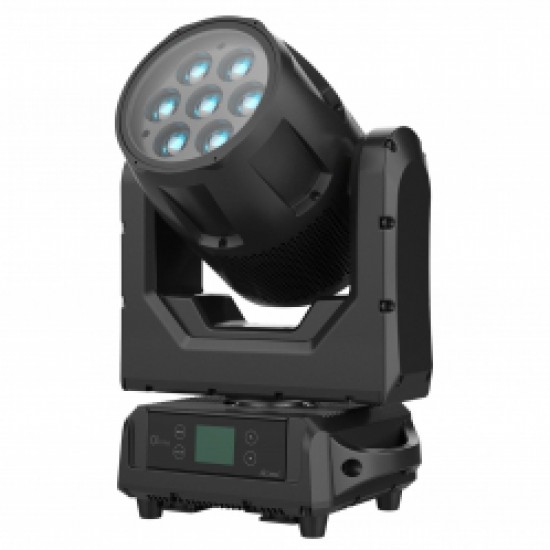

ACME OZONE

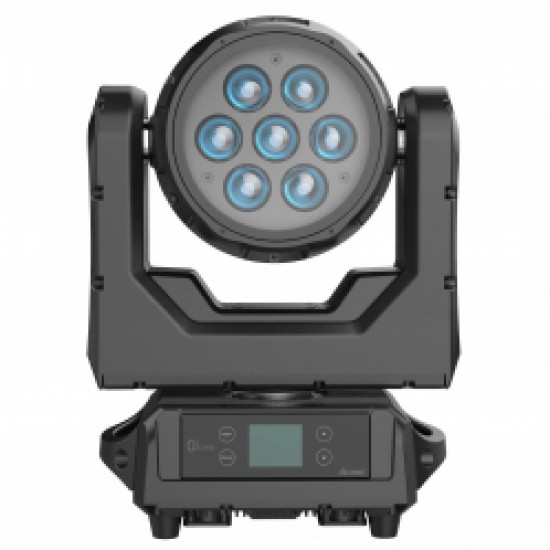

Functional Overview

The ACME OZONE is a compact, IP65-rated outdoor moving head wash fixture with an Osram 7x40W RGBW 4-in-1 LEDsource. With robust construction and IP65-rating, the OZONE is designed for indoor or outdoor use. Its durable aluminium die-cast housing protects it from dust, sand, moisture and liquid, making it ideal for use in any situation, from dusty deserts to rainy fields.

Perfect for festivals and outdoor events as well as open-air installations, this ground-breaking fixture offers an extended operational life and reduced need for maintenance, thanks to its sealed casing design and long-life LEDsource.

The OZONE is equipped with a motorized zoom (1:6.7 ratio, 6-40˚), gamma positioning correction, smooth dimming and fast pan/tilt movement.It offers a USB port for software updates and is fitted with 3-pin (5-pin optional) DMX in/out, powerconnector in/out to daisy-chain power. All connections are IP65 rated with protective rubber covers.

Features

• Light Source: 7x40W RGBW LED
• Powerful beam and wash effects
• Pixel control
• Outstanding color macro effect
• Variable CTO: 2500K - 8000K
• Motorized linear zoom
• Zoom range: 6-40°
• Outstanding strobe effect with variable speed
• Smooth dimming from 0-100%
• Fast and silent operation
• Flicker-free management
• Dust-proof and oil-proof design
• Protection Rating: IP65, can be used outdoors all year round

Technical & Specification

Model

CM-400Z IP

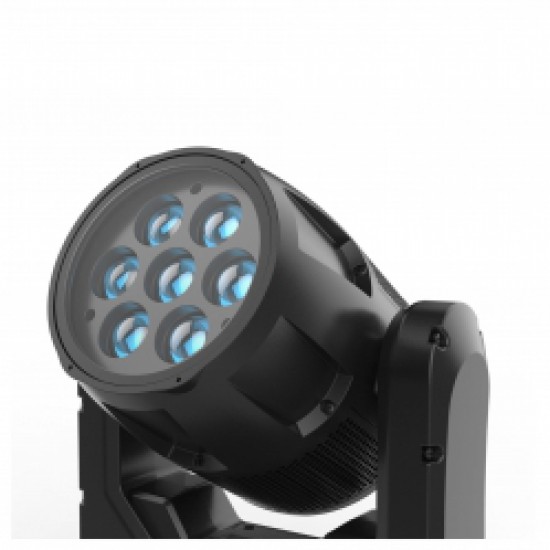

Light Source

Light Source: Osram 7x40W RGBW LED

LED life expectancy: 30,000 hours

Optical System

Advanced optical system for clear, wide-ranging beam & wash effects

High-efficiency zoom optical system (ratio 1:6.7)

Zoom range: 6-40°

Total lumen output: 3,173 lumens

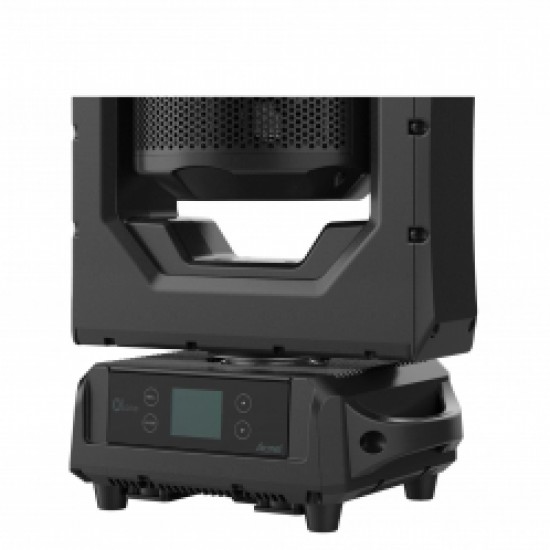

Control & Program

4-button touch panel

Display: Color Display

Protocols: DMX512, RDM

DMX Protocol modes: 2

Control channels: 16,36

Pan/Tilt Resolution: 16-bit

Dimmer: 16-bit

Firmware upgrade via DMX link & USB

Pan & Tilt

Pan movement: 540°

Tilt movement: 250°

Automatic position correction

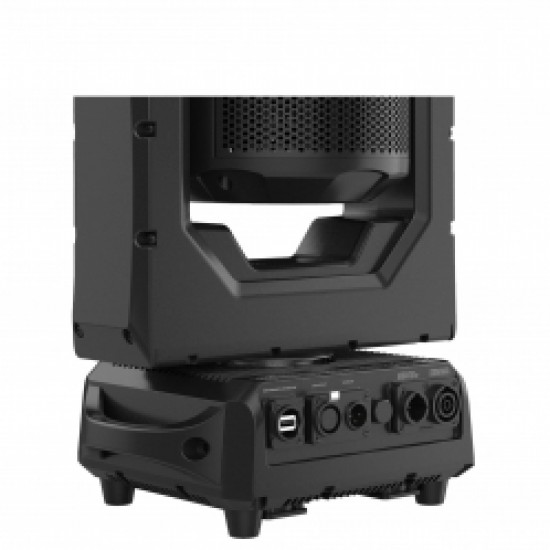

Electrical & Connectors

Power supply with electronic auto-ranging

Input voltage range: AC 100-240V, 50/60Hz

Power consumption: 380W

Power in/out: Waterproof power connector in/out

Data in/out: 3-pin IP XLR

Fixture Specification

Height: 457mm (17.9”)

Width: 303mm (11.9”)

Depth: 210mm (8.2”)

Weight: 16kg (35.2lb)

Work environment

Maximum ambient temperature: 40°C

Maximum surface temperature: 65°C

Minimum operating temperature: 0°C

Protection Rating: IP65

Approvals

CE compliant

Installation

Horizontal or vertical mounting

Operating position is universal

2 pairs of 1/4-turn locking points under the base

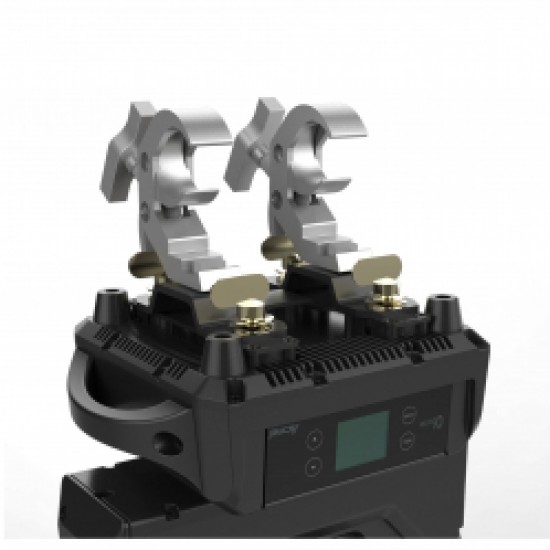

1x fast-locked clamps with 1/4-turn locks for 50mm truss

Safety cable attachment point

Included items

User Manual

Power Cable

Optional Accessories (with item code)

Clamp: 2060001614 (C-250)

Safety cable: 2060000200 (SW-02)

Signal line: 3-pin IP signal line
