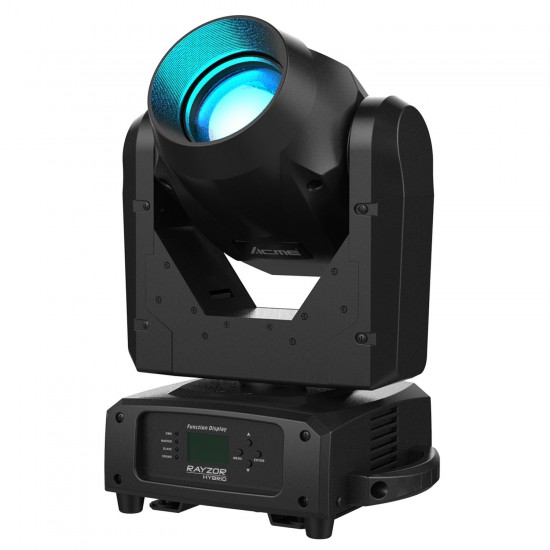

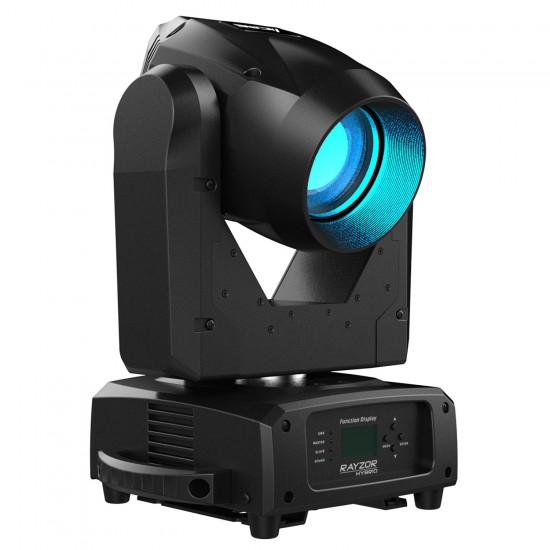

ACME RAYZOR HYBRID

Functional Overview

The 3-in-one computer moving head RAYZOR HYBRID, adopts 1 pcs 90W LED light source, which included light beam, spot and wash functions. It is energy-saving, high efficiency, long life, fast heat dissipation, powerful function and simple operation, greatly improve the performance environment, reduce the costs of maintenance and use, meet the various performance requirements in all-round situations.

Features

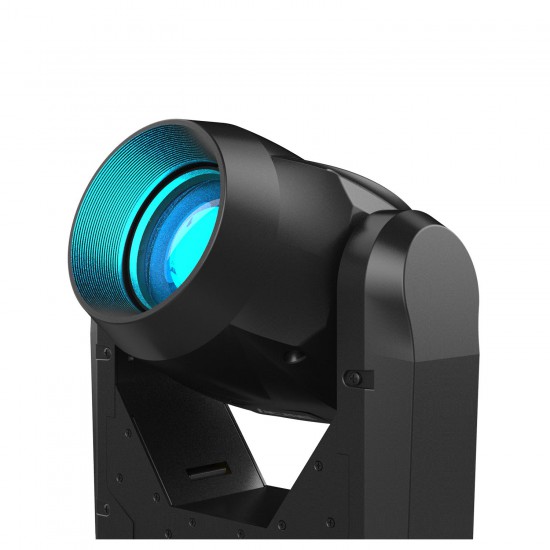

• Diameter of lens: 184mm
• Included three features: beam, spot, and wash
• Outstanding color macro effect
• Rainbow effect in both directions
• Motorized focus
• Beam Angle:
  • 11° (on full open)
  • 2°/4°/6°/8°/10° (with beam reducer)
  • 3°/6°/9°/12°/15°/19° (with zoom lens)
• Spot Angle:
  • Static Gobo: 10°→15°(with zoom lens)
  • Rotating Gobo: 10°→17°(with zoom lens)
• Wash Angle: 15°~28°
• Rotating gobo wheel: 1 rotating gobo wheel with 6 gobos plus open, convenient replacement
• Static gobo Wheel: 1 static gobo wheel with 7 gobos plus open
• Color Wheel: 1 color wheel with 8 colors plus white
• Prism: 3 - facet prism rotating in both directions
• 0~100% smooth dimming
• Independent frost effect
• Outstanding strobe effect with variable speed
• Flicker free management
• Dust-proof and oil-proof design

Technical & Specification

Model

XA-100 BSW

Light source: 1 x 90W LED

LED life expectancy: 20000 hours

Advanced optical system to ensure image quality, clear and sharp

Beam Angle:

11° (on full open)

2°/4°/6°/8°/10° (with beam reducer)

3°/6°/9°/12°/15°/19° (with zoom lens)

Spot Angle:

Fix Gobo: 10°→15°(with zoom lens)

Rotating Gobo: 10°→17°(with zoom lens)

Wash Angle: 15°~28°

4-buttons

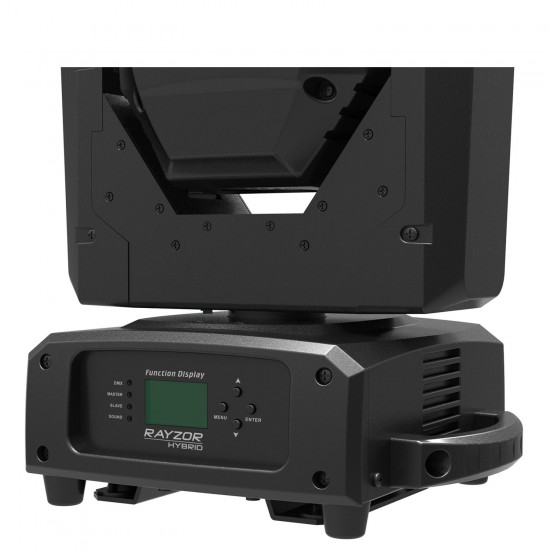

Display: LCD display

Protocols: DMX,RDM,Master/Slave,Sound Active

DMX Protocol modes: 2

Control channels: 17,20

Pan/Tilt Resolution: 16 bit

Magnetic positioning system, which can correct the position of Pan & Tilt accurately and automatically

Dimmer: 8 bit or 16 bit

Upgrade the firmware via DMX link

Pan movement: 540°

Tilt movement: 270°

1 x rotating gobos with 6 gobos plus open, convenient replacement

Image diameter: 17 mm

Outside diameter: 21 mm

Thickness: 1.1 mm

Max. thickness: 4mm

borofloat or better glass materials

Set with "SLOT&LOCK" system for gobos replacement

1 x static gobos with 7 gobos plus open

1 x color wheel with 8 colors plus white

Power supply with electronic auto-ranging

Input voltage range: AC 100–240 V, 50/60 Hz

Power consumption: 184 W

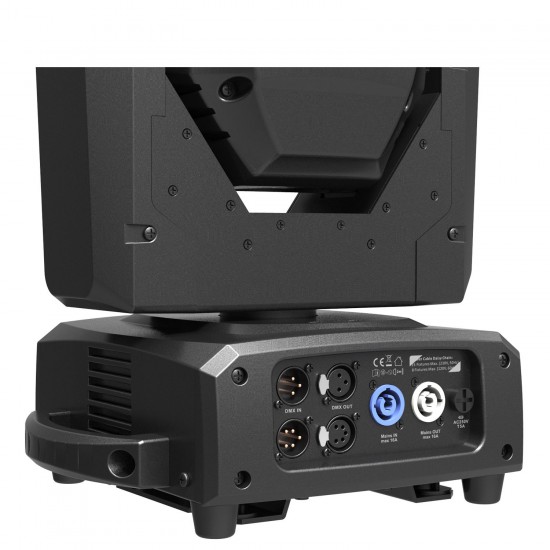

Data in/out: 3-pin and 5-pin XLR

Height: 453 mm (17.8")

Width: 255 mm (10.0")

Depth: 312 mm (12.2")

Weight: 12.2 kg (26.9 lbs)

Maximum ambient temperature: 40°C

Maximum surface temperature: 65°C

Minimum operating temperature: 0°C

CE Compliant

Horizontally or vertically mounting are available

Operating position is universal

2 pairs of 1/4-turn locking points under the base

2 x fast-locked clamps for 50 millimeter truss

Safety cable attachment point

User Manual

2 x fast-locked clamps for 50 millimeter truss

Raincover：3033001749

Flight Case：3205001218 (4 in 1)

Clamps：2060001614（C-250）

Safety cable: 2060000200（SW-02）
