ACME Sunrise

Functional Overview

ACME's new SUNRISE Beam Wash fixture,with its break-through 1000W / 6500K LED technology,offers an excellent output performance of 60,000lumens, ideal for projecting a powerfulbeam for a wide, even wash. The 90 CRI switch filter and heavy frost filter are made of brand new materials, while its two default color wheels allow for SUNRISE to easily switch between video shoot and concert applications.

What's more, SUNRISE is equipped with a rotatable framing blade module giving +/-60°movement. Because of its super-bright output, wide zoom range (1:15 ratio, 5-72˚), high CRI mode and power consumption saving, the SUNRISE Beam Wash fixture is an ideal player for any large-scale concert, video shoots, fashion shows and more.

Features

• Diameter of lens: 200mm
• Linear CMY color mixing
• Variable CTO: 2700K - 6500K
• Color Temperature 6500K
• Switch to high CRI mode with high CRI filter
• Framing shutters: 4x fast and smooth framing shutters, each individually controllable, and the entire framing module can be rotated at ±60°
• 2x color wheels, both with rainbow effect.
  • Color Wheel 1: 5 colors plus open
  • Color Wheel 2: 6 colors plus open
• Filter effect: Dual diffusion filter with patented design, made from new material, can achieve 0-100% linear softening, making the spot larger and more uniform
• Flicker-free management
• Dust-proof and oil-proof design

Technical & Specification

Model

XA-1200 BW

• Light Source

  • Light Source: SSL1050AC
  • Life expectancy: 20,000 hours
  • CRI:
    • High output mode Ra>70
    • High CRI mode Ra>90



  Optical System

  • Advanced optical system to ensure clear, sharp image quality
  • High-efficiency zoom optical system (ratio 1:14.4)
  • Zoom range: 5-72°
  • Total lumen output: up to 60,000 lumens



  Control & Program

  • 4-button touch panel
  • Display: LCD display
  • Battery backup for user setup without mains connection
  • Protocols: DMX512, Art-Net, RDM, sACN
  • DMX Protocol modes: 2
  • Control channels: 27, 18
  • Pan/Tilt Resolution: 16-bit
  • CMY color mixing system
  • Variable CTO
  • Dimmer: 8-bit or 16-bit
  • Firmware Upgrade via DMX link & USB



  Pan & Tilt

  • Pan movement: 540°
  • Tilt movement: 270°
  • Fixation: Pan/Tilt lock
  • Automatic Pan/Tilt position correction



  Color Wheel

  • 2x color wheels: both with rainbow effect
    • Color Wheel 1: 5 colors plus open
    • Color Wheel 2: 6 colors plus open



  Framing System

  • Framing shutters: 4x framing shutters, each individually controllable
  • Movement is fast, smooth and precise, with adjustable speed
  • Framing module can be rotated at ±60°



  Electrical & Connectors

  • Power supply with electronic auto-ranging
  • Input voltage range: AC 100-240V, 50/60Hz
  • Power consumption: 1535W
  • Power In/Out: Power Connector in
  • Data in/out: 3-pin and 5-pin XLR, RJ-45



  Fixture Specification

  • Height: 848mm (33.4”)
  • Width: 465mm (18.3”)
  • Depth: 352mm (13.8”)
  • Weight: 42kg (92.6 lbs)



  Work environment

  • Maximum ambient temperature: 40°C
  • Maximum surface temperature: 65°C
  • Minimum operating temperature: 0°C



  Approvals

  • CE compliant
  • cETLus compliant



  Installation

  • Horizontal or vertical mountings available
  • Operating position is universal
  • 2 pairs of 1/4-turn locking points under the base

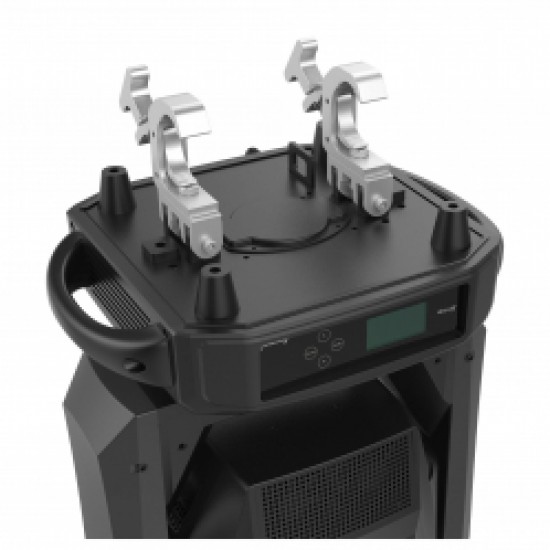

  • 2x fixed clamps with 1/4-turn locks for 50mm truss
  • 2 pairs of M12 1/4-turn locking points for removable clamp for 70mm truss
  • Safety cable attachment point
  • Pan/Tilt lock



  Included items

  • User Manual
  • Power Cable
  • 2x fixed clamps with 1/4-turn locks for 50mm truss



  Optional Accessories (with item code)

  • Raincover: 3033001750
  • Flight case: 3205001258 (1 in 1)
  • Safety cable: 2060001603-A (SW-05)
  • Signal line: 3-pin or 5-pin signal line
